Engineered to meet the unique demands of your cardiac cath lab. Clear Direction. Control Contrast Dosage,Optimize Work Flow.
Automated contrast injection allows precise, pre-set injection volume and delivers contrast rapidly through even small lumen catheters. The multi-patient tube, contrast syringe and hand controller* for MEDRAD® Avanta can be used for 5 consecutive patients. Only dual-line single-patient tube needs to be replaced.
*Use with Single Use Hand Controller Sheath required.
What is MEDRAD® Avanta?
MEDRAD® Avanta is an injector for X-ray angiography that was specifically designed with the contrast administration needs of interventional cardiology in mind.
How does MEDRAD® Avanta work?
MEDRAD® Avanta allows controlled delivery of radiopaque contrast media and common flushing solutions for interventional imaging purposes. The injector facilitates contrast delivery in fixed or variable flow mode and saline flushing at a fixed rate. It utilizes dedicated disposables that include multi-patient components and single-patient components. The system includes many automated features to streamline the workflow during an imaging procedure.
What are MEDRAD® Avanta System Configurations and Main Components?
The system includes two configuration options:

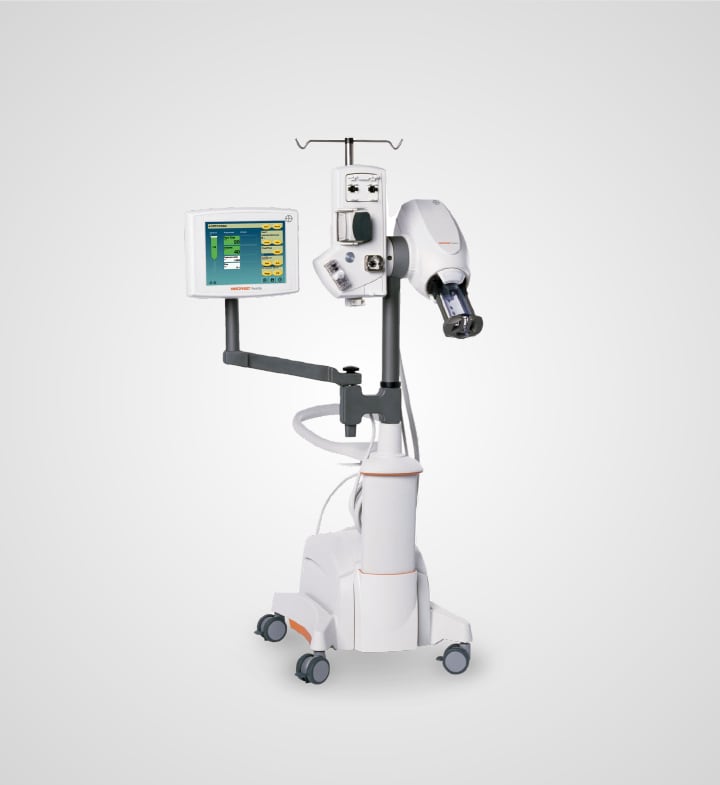

- Pedestal Configuration: This configuration conveniently houses all injector components into an integrated, mobile pedestal
- Table Mount Configuration: This mounted configuration allows attachment of the FCM/ Head structure including the DCU to the table rail or the DCU mounted separately with its own mounting bracket

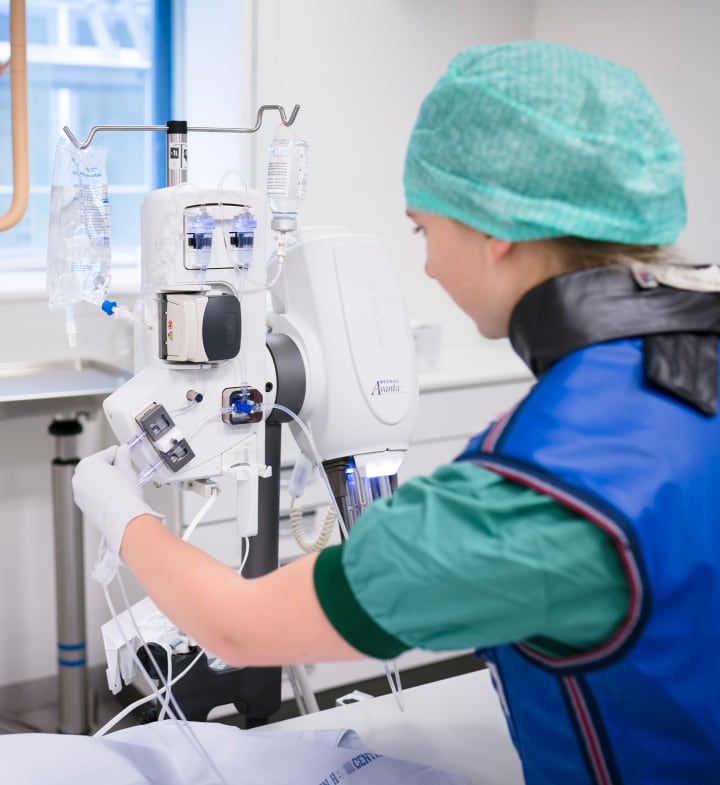

Fluid Control Module and Injector Head
The heart of the injection system is comprised of the Injector Head and the Fluid Control Module (FCM). The head has a unique drop front design for simple and clean insertion and removal of the multi-patient front load syringe. It delivers contrast at desired rates, volumes and pressures for angiographic purposes. The FCM incorporates the peristaltic pump to administer common flushing solutions at a constant rate. It automates the syringe filling process during a procedure and incorporates the infrared fluid presence detectors and the ultrasound gross air detector.
How is MEDRAD® Avanta used?
MEDRAD® Avanta is managed via the color touch screen or Display Control Unit (DCU). Programming, storing, recalling, or deleting of protocols is simple and all pertinent information is available on the touch of a finger.
|Flow Rates||Contrast: Fixed Flow: User defined from 1–45 mL/sec in increments of 0.1 mL/sec; Variable Flow: User controlled variable range from 1 to 10 mL/sec in 0.1 increments Saline: Fixed Rate: 1.0 mL/sec|
|Volume||User controlled variable range 1–150 mL in increments of 1 mL|
|Pressure Limits||User defined from 300 PSI to 1,200 PSI in increments of 1 PSI|
Manual or automatic refill 2 mL/sec
|Injection Delay||0.1 sec to 0–99.9 sec|
|Rise Time||Programmable at 0.1 sec increments from 0.1 to 9.9 sec|
|Memory||Up to 40 customizable protocols store|
26 cm (~10.5") Color Touch Screen
|Certegra™ ISI Capable||
Provides for synchronization of the injection and X-ray exposure
Bayer CT/CV injection systems are based on tried and tested technology with an excellent reliability track record.
